Replacement Denso LA146600-7920 control box

$85.00

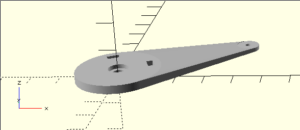

This is a replacement Denso LA146600-7920 control box used in Fleetwood RV’s from model year 2006, 2007 and possibly other years.  LA146600-7920 replacement control armThis houses the controls for the actuator arm that moves the damper cable for selecting between heat and cool.  This model has the actuator arm on the bottom of the control panel.  If your unit has the actuator arm on the top, this piece is not the right one for you.   This part is made from durable ABS plastic which will stand up to the heat of being inside the dash on a hot day.

You can manipulate the 3D model below to see if this is the correct part you need.  Please make sure this is the part you need before ordering.

Loading file
  • Fullscreen
  • Wireframe
  • Zoom In
  • Zoom Out
  • Rotation
  • Screenshot
  • Help

Controls

×
  • Rotate with the left mouse button.
  • Zoom with the scroll button.
  • Adjust camera position with the right mouse button.
  • Double-click to enter the fullscreen mode.
  • On mobile devices swipe to rotate.
  • On mobile devices pinch two fingers together or apart to adjust zoom.
  • On mobile devices 3 finger horizontal swipe performs panning.
  • On mobile devices 3 finger horizontal swipe performs panning.

Category:

Description

This is a 3D printed replacement Denso LA146600-7920 control box used in Fleetwood Bounder, Pace Arrow and possibly other RV and auto/truck units.  The OEM part for this is discontinued by the manufacturer and is no longer available.  In-dash RV HVAC ControlOver time the plastic for these gets brittle and breaks into many pieces and is near impossible to repair.  The part being sold is the rear plastic piece that houses the controls for the damper actuator.   It also holds the circuit board attached to the ribbon cable that holds the rear cable connector. You must reuse the control shaft with the shaft pinion gear and the rack gear that moves the control arm that activates the in-dash dampers for the hot and cold selector.  The replacement Denso LA146600-7920 is designed to also reuse the metal cover from your original unit.

This does not include the front facing control panel shown below. Your original control panel and some other parts from your unit will need to be reused.  DO NOT discard any of your original parts until you have fitted this part.
